Binding Parameters in View Object's SQL

for some reason the indexes doesn't match but map up to each other @w@;;;

VARCHAR parameter input for SPEL

I have this PLSQL function that determines if an attribute will be readonly or not. It returns a VARCHAR2 type with value that is either TRUE or FALSE.

cursor builder

Apparently when you set 'TRUE' or 'FALSE' on a Boolean attribute type inside a ViewObject, OAF will automatically convert the String value to the corresponding Boolean object (hmm autoboxing? not quite =w=;;)

SPEL configuration for read only attribute

still working @w@;;

Getting the Alias of a View Object Attribute

there was a time that I needed to map View Object attributes' DB column names with attribute names. However when you define a transient attribute, there will be no column name defined for it - so I resorted using the alias. Even if an attribute is not mapped to SQL the alias attribute will always be accessible.

the critical thing to note is that when you use the OAViewObject.getAttributeDefs() method, you will get an AttributeDef array which doesn't outright define the alias attribute. You need to cast it back to a ViewAttributeDefImpl object in order to make the method getAliasName() available.

OAF Best Practices (Error / Exception Handling)

A. Catching Exceptions

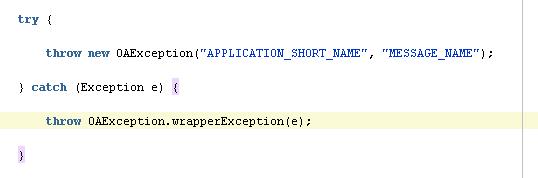

Catch exceptions within the controllers. When exceptions occur inside the application module, throw it back using

which means you also need to register your Exception messages in Oracle Apps

something like this @w@;; but I think you could do away with the catch block, unless you wanted to do something before the OAException object is finally thrown back to the controller.

B. Logging the Errors

syntax: pageContext.writeDiagnostics(String module, String messageText, int logLevel)

where the parameter module could be getClass.getName() + ".processFormRequest" (or ".processRequest"), so it will dynamically print out the class name regardless where you call it.

message could be any String  I guess @w@ use it with discretion. (limited to 4000 characters according to the documentation)

logLevel value could be referenced from OAFwkConstants (just noticed Fwk = framework @w@). So in cases you want to log Excpetion details, use OAFwkConstants.EXCEPTION which is numerically equivalent to 4.

in the example syntax, I used an instance of OAPageContext which is available for controllers. If in case you want to log things inside the application module you need to use an instance of OADBTransaction which has the same method.

sources:
The Digital Space

Nested PLSQL Exceptions

well, it's possible to do this; but you might want to avoid using this approach @w@;;;

FND_GLOBAL

SELECT  FND_GLOBAL.EMPLOYEE_ID
FROM    DUAL

EMPLOYEE_ID - Return employee id of current user. Employee_id is a foreign key to PER_PEOPLE_F.PERSON_ID

CREATE OR REPLACE PACKAGE "FND_GLOBAL"

"The server-side package APPS.FND_GLOBAL returns the values of system globals, such as the login/signon or "session" type of values. You should not use FND_GLOBAL routines in your forms (that is on the client side). On the client side, most of the procedures in the FND_GLOBAL package are replaced by a user profile option with the same (or a similar) name. You should use FND_PROFILE routines in your forms instead." (from package documentation)

- in a sense this package must only be used on server side context
- a facility for accessing environment / DB session variables
- global variables, profile values, security context

procedure APPS_INITIALIZE(user_id in number, resp_id in number, resp_appl_id in number);
used for applications which are not directly integrated with Oracle Applications and need to establish  environment variables for it's DB session

Sets up global variables and profile values in a database session. Call this procedure to initialize the global security context for a database session.This routine should only be used when a session must be established outside of a normal form or concurrent program connection. (from package documentation)

function list:
function USER_ID return number;
function RESP_ID return number;
function RESP_APPL_ID return number;
function SECURITY_GROUP_ID return number;
function USER_NAME return varchar2;
function RESP_NAME return varchar2;
function APPLICATION_NAME return varchar2;
function APPLICATION_SHORT_NAME return varchar2;
function LOGIN_ID return number;
function CONC_LOGIN_ID return number;
function PROG_APPL_ID return number;
function CONC_PROGRAM_ID return number;
function CONC_REQUEST_ID return number;
function CONC_PRIORITY_REQUEST return number;
function PER_BUSINESS_GROUP_ID return number;
function PER_SECURITY_PROFILE_ID return number;
function LANGUAGE_COUNT return number;
function CURRENT_LANGUAGE return varchar2;
function BASE_LANGUAGE return varchar2;
function RT_TEST_ID return number;
function SECURITY_GROUP_ID_POLICY(d1 varchar2, d2 varchar2) return varchar2;
function AUDIT_ACTIVE return BOOLEAN;
function Lookup_Security_Group(lookup_type in varchar2, view_application_id in number) return number;
function Get_Session_Context return number;
function Compare_Session_Context(context_id in number) return boolean;
function Assert_No_Pool return boolean;
function EMPLOYEE_ID return number;
function CUSTOMER_ID return number;
function SUPPLIER_ID return number;
function FORM_ID return number;
function FORM_APPL_ID return number;
function CONC_PROCESS_ID return number;
function CONC_QUEUE_ID return number;
function QUEUE_APPL_ID return number;
function SESSION_ID return number;
function SERVER_ID return number;
function ORG_ID return number;
function ORG_NAME return varchar2;
function PARTY_ID return number;
function NLS_LANGUAGE return varchar2;
function NLS_NUMERIC_CHARACTERS return varchar2;
function NLS_DATE_FORMAT return varchar2;
function NLS_DATE_LANGUAGE return varchar2;
function NLS_TERRITORY return varchar2;
function NLS_SORT return varchar2;


sources:
murthy
appsbi

todo: expound v0.3

Mapping Application Short Name to Application Name

For some reason, the APPLICATION_SHORT_NAME and APPLICATION_NAME of registered applications in R12 are stored in separate DB tables : FND_APPLICATION and FND_APPLICATION_TL

R12 Workflow Notifications Status Monitor

Most of the time it takes a longer time to receive workflow notifications from the email server - so it's better to check them using the R12 administration pages.

under the System Administrator menu, you'll find the Workflow : Administrator Workflow > Status Monitor link

search for your workflow notfication by supplying the paramters

select an entry and click on the Activity History button

on the lower part of the Activity History screen, click the Notification icon

you'll finally able to view the contents of the generated notification email

R12 Responsibilities (OAF)

encountering an error like this means that your user profile doesn't have the assigned responsibility needed to access the page. You can view a responsibility as R12's version of user groups that define which users can access menus, pages, etc of the application.



tbc

Manual Implementation of Train Navbar Buttons - OAF

pointers:
- take note of OAWebBeanConstants.DESTINATION_ATTR (formerly URL - which was deprecated).
- set retainAM parameter to "true"

Apache POI - creating a new MSWord Document through Java

Downloading Files in OAF

OAF doesn't readily expose the Controller Servlet's HttpRequest and HttpResponse objects so you need to extract it from the OAPageContext object via:

HttpServletResponse response = (HttpServletResponse) pageContext.getRenderingContext().getServletResponse();

Once you get the response object you could already manipulate its OutputStream.

     public void downloadFile(OAPageContext pageContext) {

         HttpServletResponse response = (HttpServletResponse) pageContext.getRenderingContext().getServletResponse();

         File fileToDownload = this.createFile();

         String fileType = getMimeType("txt");
         response.setContentType(fileType);
         response.setContentLength((int) fileToDownload.length());
         response.setHeader("Content-Disposition", "attachment; filename=\"" + fileToDownload.getName() + "\"");

         InputStream in = null;
         ServletOutputStream outs = null;

         try {

             outs = response.getOutputStream();
             in = new BufferedInputStream(new FileInputStream(fileToDownload));
             int ch;

             while ((ch = in.read()) != -1) {
                 outs.write(ch);
             }

         } catch (IOException e) {

             // TODO
             e.printStackTrace();

         } finally {

             try {

                 outs.flush();
                 outs.close();

                 if (in != null) {
                     in.close();
                 }

             } catch (Exception e) {

                 e.printStackTrace();

             }

         }

     }

However, manipulating the response object will flag OAF for back navigation so you might want to handle this - if you are actively checking this event.

USING clause

EXECUTE IMMEDIATE 'DELETE FROM dept WHERE deptno = :num'

USING dept_id;

Handling Navigation Events (NavBar)

GOTO_PARAM (deprecated) / GOTO_EVENT (R12)
- the default parameter name for navigation events
- Advanced Table navigation and NavBar reacts to this

SOURCE_PARAM
- used to distinguish which type of object triggered the event

VALUE_PARAM
- used to determine the destination of the

Breaking the Haitus

Holidays are over ^^ There are still many things I need to test with PLSQL, so I'll be posting more soon XD

皆さまにあけましておめでと^^!!
